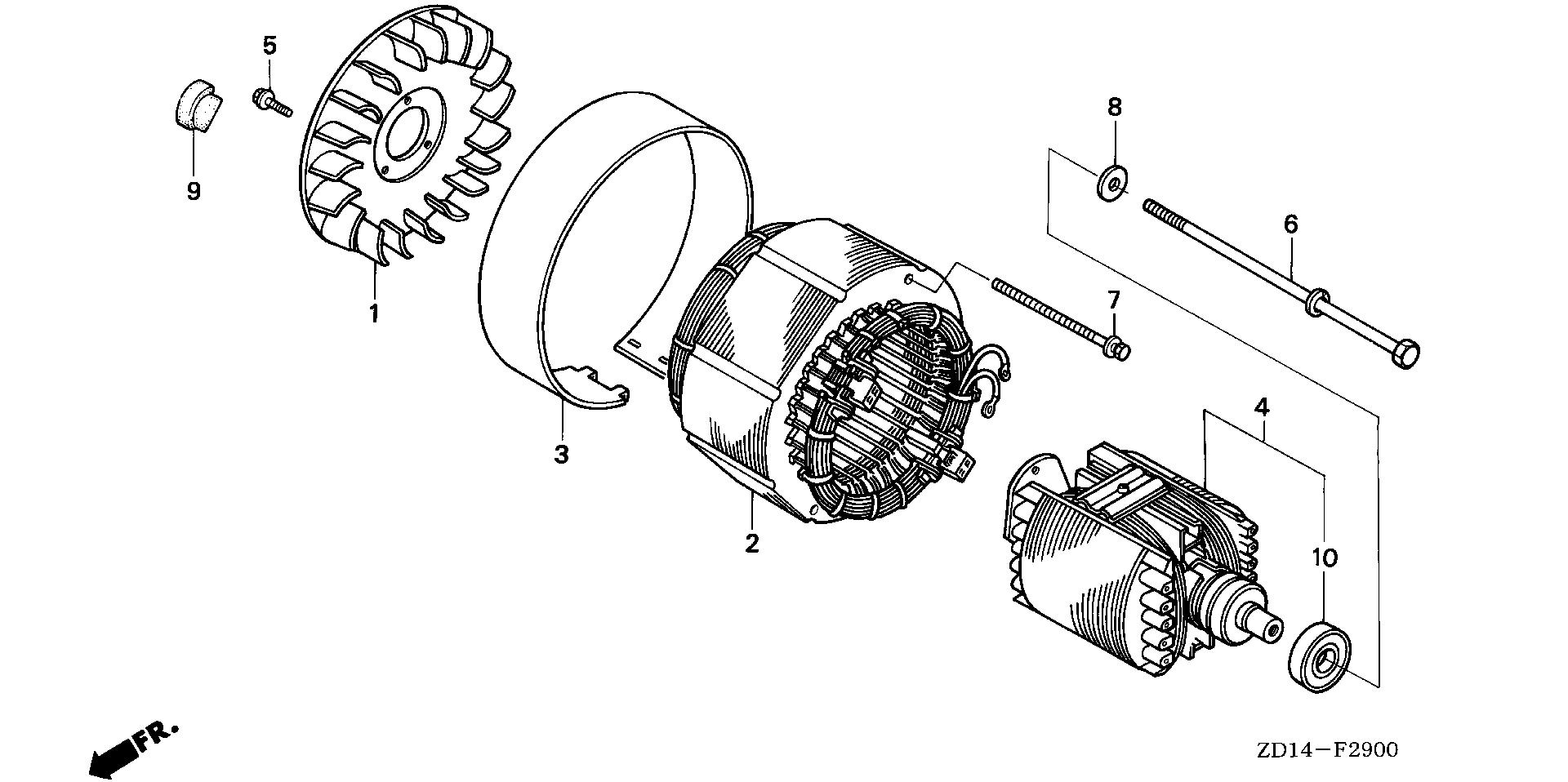

Generators EB EB6500 EB6500SX A EZCH-1000001-1049999 ROTOR@STATOR - Ambridge Do It Best Home Center

Ref No
Part Number
Description
Serial Range
Qty
Price

Ref No
1
Part Number
31112-ZB4-003
Description
FAN, GENERATOR COOLING
Serial Range
1002195 - 9999999
Qty
Price
$86.62

Ref No
2
Part Number
31120-ZD1-E31
Description
STATOR ASSY.
Serial Range
1000001 - 9999999
Qty
Price
$1,008.63

Ref No
3
Part Number
31127-ZC2-831
Description
COVER, STATOR
Serial Range
1000001 - 9999999
Qty
Price
$46.54

Ref No
4
Part Number
31130-ZP1-H61
Description
ROTOR
Serial Range
1000001 - 9999999
Qty
Price
$590.31

Ref No
5
Part Number
90032-875-003
Description
SCREW, TAPPING (5X14)
Serial Range
1000001 - 9999999
Qty
Price
$2.22

Ref No
6
Part Number
90101-ZD1-E30
Description
BOLT, HEX. (10X265)
Serial Range
1000001 - 9999999
Qty
Price
$20.46

Ref No
7
Part Number
90102-ZD1-E31
Description
BOLT-WASHER (5X210)
Serial Range
1000001 - 9999999
Qty
Price
$9.72

Ref No
8
Part Number
90504-ZA0-000
Description
WASHER (10.5MM)
Serial Range
1000001 - 9999999
Qty
Price
$4.74

Ref No
9
Part Number
90855-ZB4-000
Description
GROMMET, CRANKCASE
Serial Range
1000001 - 1007731
Qty
Price
$3.06

Ref No
10
Part Number
91051-ZB4-003
Description
BEARING ASSY. (6204)
Serial Range
1007732 - 9999999
Qty
Price
$26.14
